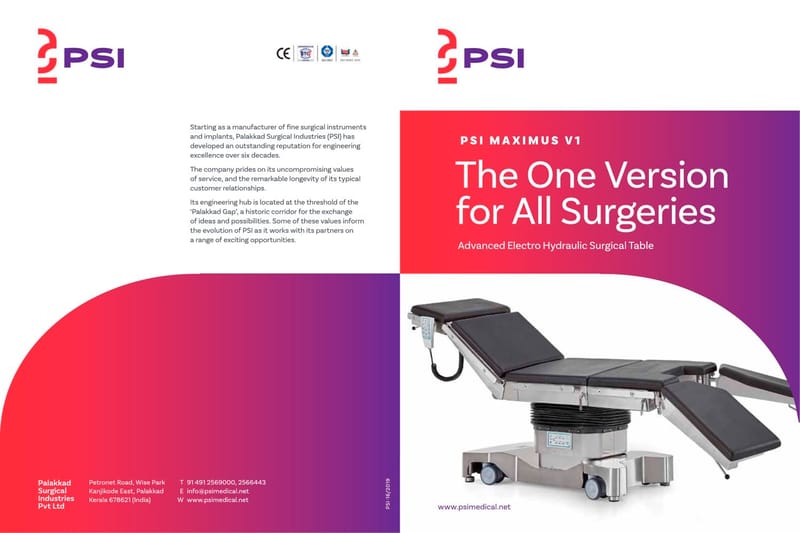

The PSI Maximus V1 is an advanced electro-hydraulic surgical table described as the one version for all surgeries. It has a completely radiolucent tabletop, optional carbon-fiber tabletop for 2D and 3D imaging, and Fluidic sequential posture formation with programmed flex and reflex from a single button. The brochure lists compatibility with robotic surgery, brachytherapy, C-Arm and O-Arm imaging,
| Type | Advanced electro-hydraulic surgical table (General Surgery configuration) |
|---|---|
| Tabletop | Completely radiolucent; optional carbon fiber for 2D & 3D imaging |
| Total length | 2160 mm (GS) |
| Head section | 260 mm |
| Back plate section | 420 mm |
| Mid section | 510 mm |
| Hip section | 410 mm (GS) |
| Split leg sections | 510 mm (GS) |
| Bed width | 530 mm |
| Width with side rails | 580 mm |
| Width with extenders | 730 mm (each extender 100 mm; both sides) |
| Width with extenders including side rails | 780 mm |
| Non-divided leg section width | 760 mm |
| Safe weight bearing (distributed loading) | 400 kg except in top-slide position; 250 kg in top-slide position |
| Height (motorized) | 610 mm min to 960 mm max (GS) |
| Lateral tilt (motorized) | 20° left / 20° right |
| Trendelenburg / reverse (motorized) | 30° / 30° |
| Beach chair (motorized) | 80° / -35° |
| Top slide (motorized) | 300 mm |
| Flex / reflex (motorized, single button) | 240° / 120° |
| Head section (manual) | Up 45°; Down 45° / 90° |
| Leg section (manual) | 20° / -90° |
| Kidney position | Motorized by flexing |
| Braking | Motorized hydraulic power brake via hand switch and panel switch |
| Override | Electrical / battery; panel switch on column |
| Zero position | Motorized (Trendelenburg, reverse, L/R tilts, back plate; optionally up/down / top slide) |
| Base | SS-covered Fluidic design; four powered hydraulic pumps; large swivel wheels |
| Features | Soft start and slow movement; memory function; safety hand switch with selection and cursor buttons; foot switch option; X-ray cassette holder option |
| Certification (brochure) | ISO 14001:2015 |
