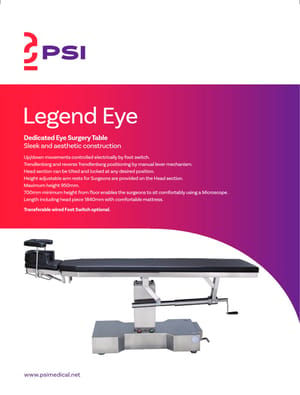

| Type | Dedicated eye / ophthalmic surgery table | Advanced electro-hydraulic surgical table (Orthopaedic configuration) |
| Height (max) | 950 mm | — |
| Height (min) | 700 mm from floor (to allow sitting with a microscope) | — |
| Total length | 1840 mm including headpiece and mattress | 2060 mm (Ortho) |
| Height movement | Electric, foot-switch controlled | — |
| Trendelenburg / reverse | Manual lever mechanism | — |
| Head section | Tilts and locks at any desired position; height-adjustable surgeon armrests | 260 mm |
| Optional | Transferable wired foot switch | — |
| Back plate section | — | 420 mm |
| Mid section | — | 510 mm |
| Hip section | — | 280 mm (Ortho) |
| Split leg sections | — | 560 mm (Ortho) |
| Bed width | — | 530 mm |
| Width with side rails | — | 580 mm |
| Width with extenders | — | 730 mm |
| Safe weight bearing (distributed loading) | — | 400 kg except in top-slide position; 250 kg in top-slide position |
| Height (motorized) | — | 720 mm min to 1070 mm max (Ortho) |
| Lateral tilt (motorized) | — | 20° left / 20° right |
| Trendelenburg / reverse (motorized) | — | 30° / 30° |
| Beach chair (motorized) | — | 80° / -35° |
| Top slide (motorized) | — | 300 mm |
| Flex / reflex (motorized, single button) | — | 240° / 120° |
| Tabletop | — | Completely radiolucent; optional carbon fiber for 2D & 3D imaging |
