Price on request

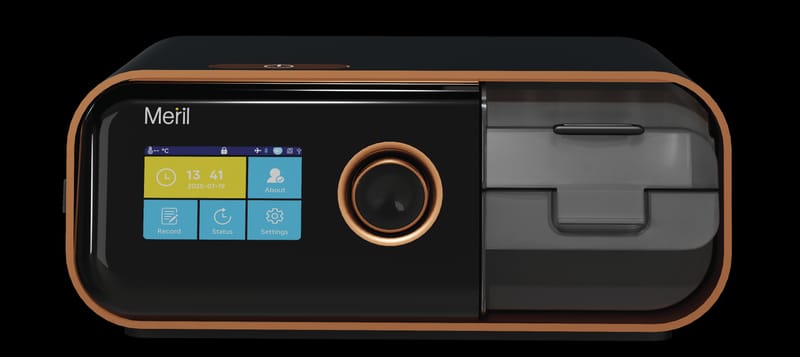

Meril BreathFlex BPAP is a bi-level non-invasive ventilation device delivering distinct IPAP and EPAP for obstructive, central or mixed sleep apnea and hypoventilation. Modes listed are CPAP, AUTO, AUTO S, S, T, ST and APCV. PneumaLogic CSA detection and AdaptiveIQ automation are described, with riDream app connectivity.
| Type | Bi-level positive airway pressure (BPAP) device |
|---|---|
| Operating modes | CPAP, AUTO, AUTO S, S, T, ST, APCV |
| Pressure range | 4–30 cm H2O |
| Ramp time | 0–60 minutes (1-minute steps) |
| Backup rate | 5–60 bpm (±1 bpm) |
| I:E ratio | 10%–90% (±1%) |
| Maximum flow rate | ≥ 170 L/min |
| Noise | ≤ 30 dB |
| Dimensions | 266.80 × 172.50 × 118.50 mm |
| Weight | 1.9 kg |
| Water tank | 200 ml |
| Humidifier settings | Level 0–5 (max 65 °C); water temperature 45–65 °C |
| Heated tube range | 10–30 °C |
| Power supply | 100–240 V AC, 50/60 Hz, 1.5 A max |
| Ports | Micro SD, Type-C, SIM card |
| Auto start/stop | Starts when mask is worn; stops automatically 15 s after mask removal |
| Alarms | Power-failure buzzer ≥ 15 s; pressure-deviation alarms; manual restart after power restore |
| Clinical applications (brochure) | OSA, CSA, mixed/complex apnea, obesity hypoventilation syndrome, periodic breathing disorders |
| Mode notes | S: COPD/mild hypoventilation; T: central apnea/low respiratory drive; ST: mixed/complex apnea; Auto S: variable obstruction; APCV: neuromuscular disorders |
